MaxPly
Wire Mesh / Anti-Slip Plywood

EZ Mesh
Anti-Slip Plywood

EZ Mesh is a robust and economical hardwood plantation anti-slip plywood with a PSF wire mesh overlay using premium Dynea film. Available in the widest thickness range of the MaxPly wire mesh range — from 9 to 35 mm — it delivers exceptional wear resistance and high bearing capacity for industrial and vehicle flooring applications.

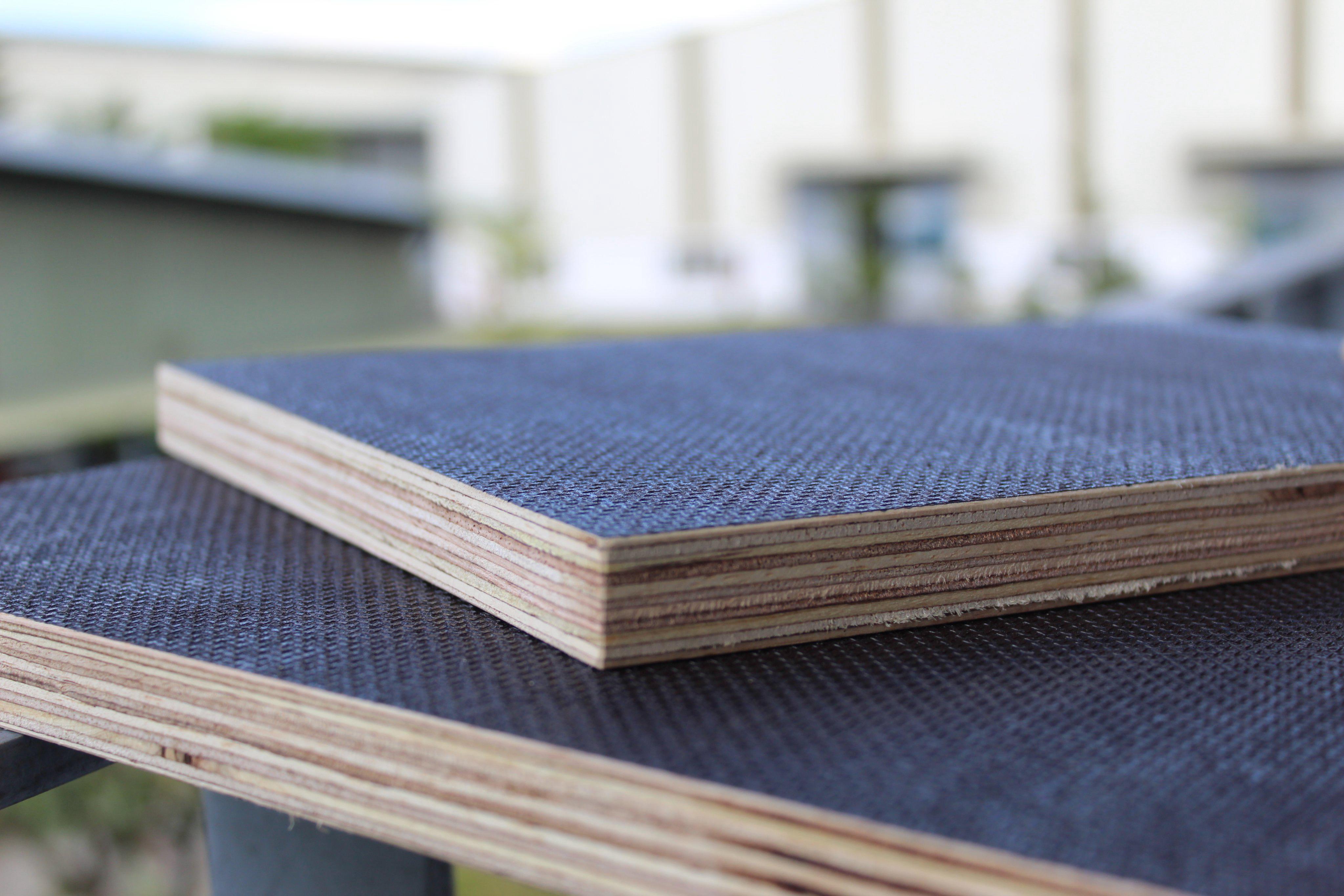

EZ Mesh Anti-Slip Plywood with PSF wire mesh overlay and hardwood plantation core
Wire Mesh / Anti-Slip 9–35 mm · Hardwood

EZ Mesh Anti-Slip Plywood — MaxPly

MaxPly EZ Mesh is a hardwood plantation anti-slip plywood with a PSF wire mesh overlay using Dynea film in 130 or 220 g/m² weight. It is exterior glued with phenolic adhesive, offering exceptional wear resistance and high bearing capacity. Available in a wide range of thicknesses: 9, 12, 15, 18, 21, 24, 27, 30, and 35 mm. Standard size 1250×2500 mm. Wood species: combi hardwood (optional rubberwood). Key properties: economical choice, robust construction, anti-slip surface, versatile applications, forest certified and sustainable. Certified to ISO 9001, ISO 14001, CE EN13986, FSC CoC, and EUDR compliant. Ideal for industrial flooring, vehicle flooring, loading platforms, and any application where reliable anti-slip performance and cost-effectiveness are required.

Key Characteristics

Economical hardwood plantation anti-slip plywood with premium Dynea film overlay — the widest thickness range in the MaxPly wire mesh range

Overlay
PSF Dynea Film
Wire mesh pattern — 130 or 220 g/m² Dynea film
Thickness Range
9 – 35 mm
9 thicknesses available for maximum flexibility
Bonding
Exterior Glued
Phenolic WBP adhesive — full exterior grade
Sourcing
FSC Certified
Forest certified sustainable hardwood plantation

Product Overview

EZ Mesh is a versatile anti-slip plywood solution designed for durability and safety across industrial and commercial flooring environments. Manufactured from combi hardwood plantation timber and bonded with exterior-grade phenolic adhesive, it carries a PSF wire mesh overlay using premium Dynea film — available in 130 or 220 g/m² — permanently bonded to deliver a consistent, reliable non-slip surface.

With nine available thicknesses ranging from 9 to 35 mm, EZ Mesh offers greater flexibility than any other product in the MaxPly wire mesh range. This broad thickness coverage makes it adaptable to a wide variety of structural and flooring requirements, from lightweight decking to heavy-duty industrial platforms.

Positioned as the economical choice within the MaxPly anti-slip range, EZ Mesh does not sacrifice performance for cost. Its robust construction, exterior-grade bonding, and forest-certified sustainable sourcing make it a dependable long-term flooring solution for projects where value, reliability, and environmental compliance all matter.

Key Features

  • PSF wire mesh overlay with Dynea film (130 or 220 g/m²)
  • Exterior-grade phenolic bonding throughout
  • Widest thickness range in the wire mesh range — 9 to 35 mm
  • Exceptional wear resistance and high bearing capacity
  • Economical choice — high performance at accessible cost
  • FSC Chain of Custody certified — sustainable plantation hardwood

Packaging & Shipping

Panels are bundled and wrapped on wooden pallets suitable for container and truck shipment.

Edge protection and moisture barriers applied as standard for international transit.

Contact our sales team for volume pricing, thickness availability, and lead times.

Technical Specifications

Wood SpeciesCombi hardwood (optional: rubberwood)
OverlayPSF wire mesh pattern — Dynea film 130 / 220 g/m²
GluePhenolic (WBP) — exterior grade
Available Thicknesses9 · 12 · 15 · 18 · 21 · 24 · 27 · 30 · 35 mm
Standard Size1250×2500 mm
Moisture ResistanceHigh — exterior-grade bonding
CertificationISO 9001:14001, CE EN13986, FSC CoC, EUDR
TolerancesAs per EN 315:2000
PositioningEconomical — robust construction, versatile applications
Primary UseIndustrial flooring, vehicle decking, loading platforms
Download Datasheets →

Mechanical Properties

Hardwood plantation construction with Dynea film overlay delivers strong bending performance, high stiffness, and proven abrasion resistance

Bending Strength (L)
≥ 30 N/mm²
Along panel length (EN 310)
Bending Strength (W)
≥ 50 N/mm²
Along panel width (EN 310)
Modulus of Elasticity (L)
≥ 3,000 N/mm²
Along panel length (EN 310)
Abrasion Resistance
300 Rev
Taber abrasion test — proven wear resistance

Applications

EZ Mesh is a versatile anti-slip flooring panel suitable across a broad range of industrial, commercial, and transport settings. Its nine available thicknesses, exterior-grade construction, and economical positioning make it the practical choice for projects where scale, adaptability, and value are all priorities.

Industrial Flooring

Factory floors, warehouse platforms, and loading bays requiring a durable, cost-effective non-slip surface that performs reliably under heavy foot traffic and equipment loads.

Vehicle & Transport Flooring

Vehicle flooring and decking applications where the wide thickness range and robust construction meet diverse structural specifications across different vehicle types.

Loading Platforms & Ramps

Loading areas, dock ramps, and access platforms where a slip-resistant surface with high bearing capacity is essential for safety and operational efficiency.

General Anti-Slip Flooring

Any application requiring a dependable, certified anti-slip plywood panel — EZ Mesh delivers proven performance across a versatile range of thicknesses at an accessible price point.

Certifications

ISO 9001 : 14001

Quality management and environmental management systems.

CE EN13986 + A1:2015

European conformity for wood-based panels (system 2+).

CARB P2 / Lacey Act

California Air Resources Board Phase 2 and US wood legality compliance.

EUDR Compliant

EU Deforestation Regulation compliance with full traceability.

FSC Chain of Custody

Verified sustainable forestry sourcing — FSC CoC certified.
