What makes TWIN Wire Mesh Plywood different from standard anti-slip plywood?

TWIN Wire Mesh Plywood has two distinct faces: one smooth phenolic film face and one anti-slip mesh or hexagonal film face. This dual-surface construction gives installers flexibility — the smooth face can be oriented downward for installation while the anti-slip face provides grip on the working surface.

What is the core composition of TWIN Wire Mesh Plywood?

TWIN plywood uses a Pine core with Poplar cross-bands. The Poplar layers improve overall panel strength and structural stability, while the anti-slip film on the working face enhances resistance. The result is a strong, stable panel well-suited to heavy-duty flooring applications.

What panel sizes are available for TWIN Wire Mesh Plywood?

TWIN Wire Mesh Plywood is available in standard panel sizes of 1250×2500 mm and 2440×1220 mm. Other sizes may be available on request — contact our sales team for specific requirements.

What are the main applications for TWIN Wire Mesh Plywood?

TWIN Wire Mesh Plywood is primarily used for flooring and trailer applications. Its combination of a smooth underside for stable installation and an anti-slip working surface makes it ideal for vehicle floors, loading platforms, and any application requiring reliable grip with a structurally sound panel.

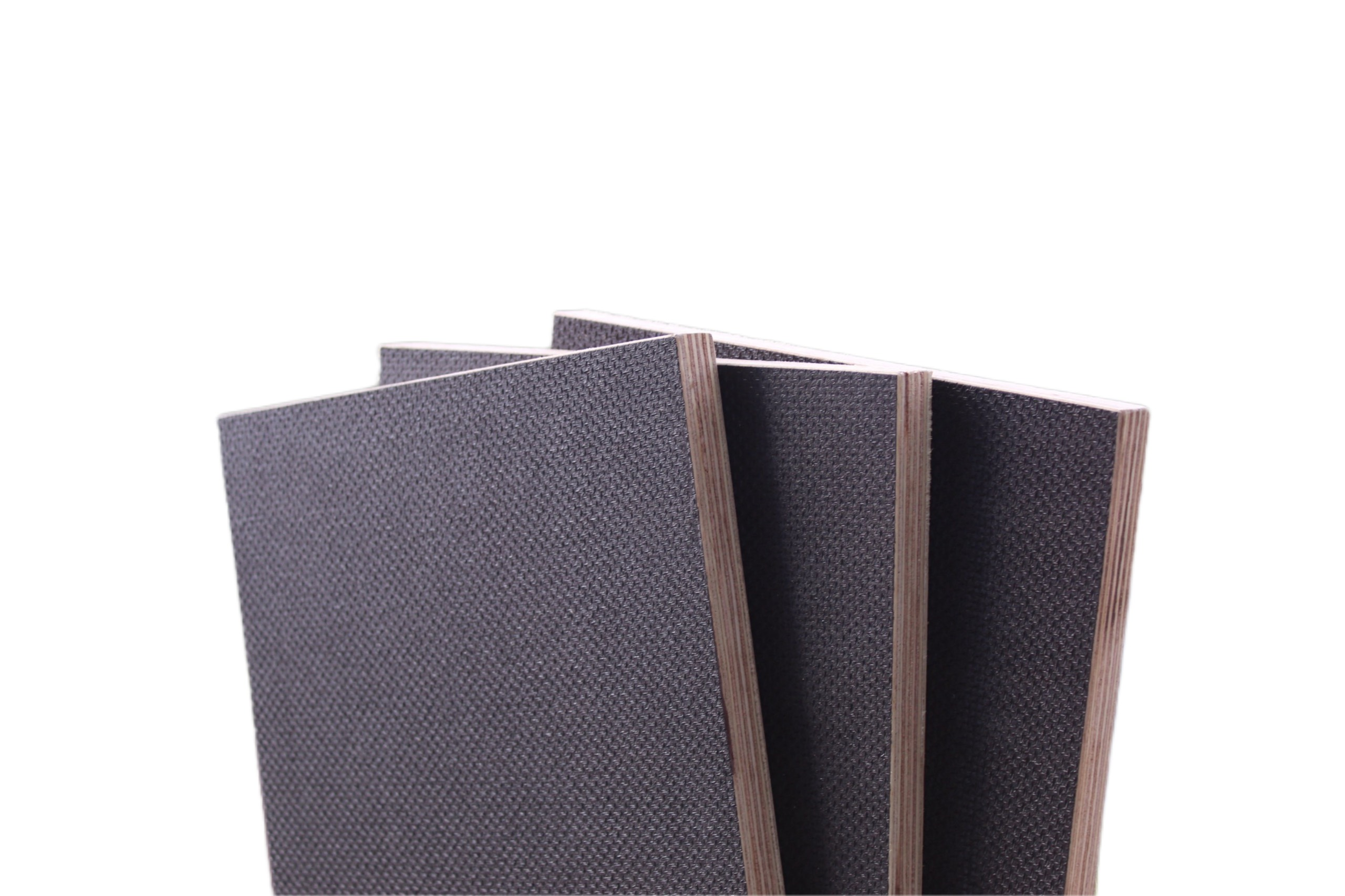

TWIN Wire Mesh / Anti-Slip Plywood

Name: TWIN Wire Mesh / Anti-Slip Plywood
Brand: MaxPly
Availability: InStock

Key Characteristics

A uniquely dual-surface panel — smooth film face for installation, anti-slip face for the working surface — built on a strong Pine and Poplar core

Core

Pine + Poplar

Pine core with Poplar cross-bands for added strength and stability

Face 1

Smooth Film

Phenolic film for clean, stable installation surface

Face 2

Anti-Slip Film

Mesh or hexagonal pattern for reliable grip on the working surface

Panel Sizes

2 Formats

1250×2500 mm and 2440×1220 mm standard

Product Overview

TWIN Wire Mesh / Anti-Slip Plywood is built on a Pine core reinforced with Poplar cross-bands, combining the structural benefits of both species. One face is finished with a smooth phenolic film, while the other carries a durable anti-slip film in either a wire mesh or hexagonal pattern — giving each panel a clearly defined installation side and working surface.

The Poplar cross-bands contribute to improved panel strength and dimensional stability, while the anti-slip film surface enhances resistance to wear and slip in active flooring environments. Together, these elements create a plywood that is both strong and stable — engineered specifically for applications where consistent performance on both faces is needed.

The dual-surface design makes TWIN particularly well-suited to trailer and vehicle flooring, where the smooth underside provides a clean interface with the vehicle structure and the textured top face ensures safe footing for personnel and cargo.

Key Features

Dual-surface construction — smooth film one side, anti-slip film the other
Pine core with Poplar cross-bands for enhanced strength and stability
Anti-slip surface available in wire mesh or hexagonal pattern
Phenolic bonding — exterior-grade WBP adhesive throughout
Purpose-built for flooring and trailer decking applications
Available in two standard panel formats for efficient installation

Packaging & Shipping

Panels are bundled and wrapped on wooden pallets suitable for container and truck shipment.

Edge protection and moisture barriers applied as standard for international transit.

Contact our sales team for volume pricing and lead times.

Technical Specifications

Core Species	Pine with Poplar cross-bands
Face 1 (smooth)	Smooth phenolic film
Face 2 (anti-slip)	Mesh or hexagonal anti-slip phenolic film
Glue	Phenolic (WBP) — exterior grade
Panel Sizes	1250×2500 mm · 2440×1220 mm
Emission Class	E1
Moisture Resistance	High — exterior-grade bonding
Certification	ISO 9001:14001, CE EN13986, EUDR / FSC CoC
Tolerances	As per EN 315:2000
Primary Use	Flooring, trailers, vehicle decking

Download Datasheets →

Mechanical Properties

Pine and Poplar in combination deliver a well-rounded structural profile — sufficient bending strength and stiffness for flooring loads, without excess weight

Bending Strength (L)

≥ 24 N/mm²

Along panel length (EN 310)

Bending Strength (W)

≥ 14 N/mm²

Along panel width (EN 310)

Modulus of Elasticity (L)

≥ 4,000 N/mm²

Along panel length (EN 310)

Bond Quality

Class 3

Exterior exposure (EN 314-2)

Applications

TWIN Wire Mesh Plywood is a specialist flooring panel designed around the practical requirements of transport and industrial environments. Its dual-surface format makes it immediately functional — no additional surface treatment needed on either face.

Trailer & Vehicle Flooring

The smooth underface bonds cleanly to trailer structures while the anti-slip top surface provides reliable grip for cargo and personnel — making TWIN the natural choice for trailer decking.

Industrial & Commercial Flooring

Factory floors, warehouse platforms, and loading bays where a non-slip working surface and stable underlay are required simultaneously.

Container & Logistics

Container flooring and loading deck applications where the dual-surface format reduces installation steps and ensures consistent performance from day one.
